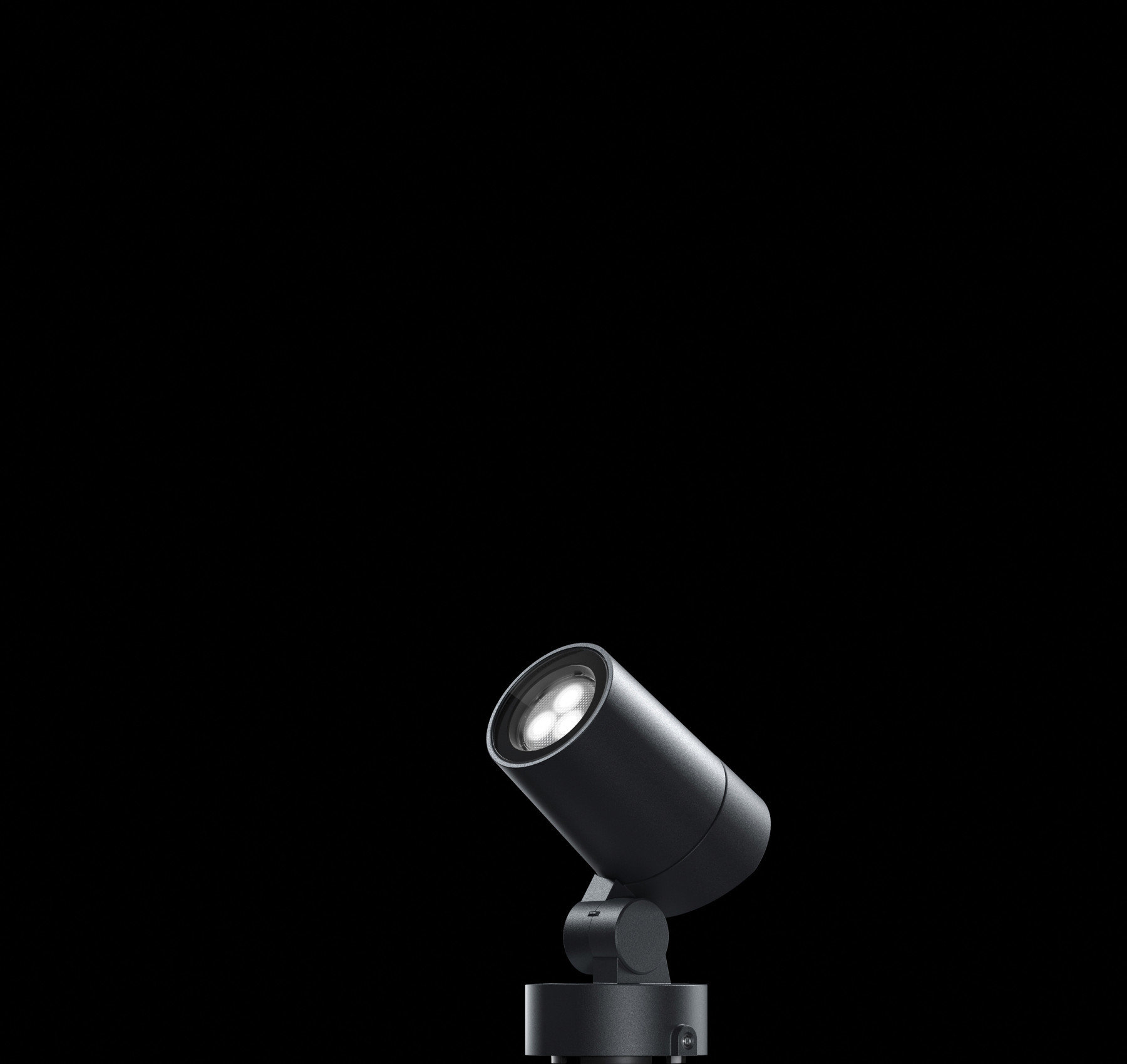

The small, sophisticated tool for outdoor lighting: ERCO Kona XS projectors, floodlights and wallwashers

Lüdenscheid, April 2017. With Kona XS, ERCO presents a new system of outdoor lighting tools designed to complete the range of compact luminaires with low power consumption. Kona XS may be small in design, but it is big on quality, with lighting technology and a robust construction that meet the professional standards of architects, lighting designers, landscape and urban planners.

There are many situations in private or public outdoor lighting projects where small and precise lighting tools are preferable to a powerhouse approach - especially when used in urban areas, in parks or for objects around buildings. Often, the required criteria in these applications, such as glare control or flexibility, are easier to meet with several smaller luminaires than fewer large options. ERCO has developed the new Kona XS range specifically for this purpose - the smallest outdoor projector in the ERCO range has been reduced to the essential, offering an efficient and robust tool for effortless planning and implementation of outdoor lighting solutions.

Reduced to the essential

Kona XS adopts the design of its larger cousins in the Kona range, with a modern, tapered housing made of high-quality cast aluminium in an understated and distinct design. Finished with a double powder-coating for a durable refined look, the system supports easy maintenance and, thanks to an IP65 rating, withstands exposure to dust and water, making it suitable for a multitude of lighting tasks in the outdoor area. The sturdy hinge with internal wiring can be locked in position for secure fixing of the beam direction, with a rotatable mounting plate for pinpoint alignment.

Precise and efficient lighting concepts

All luminaires in the Kona XS range feature highly efficient Spherolit LED lenses, offering the superb lighting quality and large range of distribution options that lighting designers have come to expect from ERCO: projectors ranging from narrow spot and spot to flood, floodlights with rotationally symmetrical wide flood light distribution, and lens wallwashers with asymmetrical light distribution for highly uniform wallwashing of vertical surfaces. True to the ERCO luminaire system concept, all options are available with warm white (3000K) and neutral white LEDs (4000K), while different lumen packages broaden the scope for creative solutions still further. As a result, Kona XS enables precise and efficient lighting concepts in the outdoor area without detracting from the magic of the night.

Technical features

ERCO lens system: Spherolit lens, collimator made of optical polymer, light distributions: narrow spot, spot, flood, wide flood, wallwash
ERCO LED module: High-power LEDs on metal-core PCB,
light colours: warm white or neutral white, 3000 or 4000K
Housing: Cast aluminium, IP65, with No-Rinse surface treatment, double powder-coated, Graphit m
Mounting: Mounting plate rotatable through 240°, cast aluminium, internal wiring
Control gear: Switchable

(3003 Characters)

About ERCO

The ERCO Light Factory in Lüdenscheid is a leading international specialist in architectural lighting using LED technology. The family business, founded in 1934, now operates as a global player with over 60 subsidiaries, branches and agencies in over 40 countries worldwide. Since 2015 ERCO's portfolio has been 100% LED. Inspired by "light digital" as its leitmotif, ERCO in Lüdenscheid develops, designs and produces digital luminaires with focus on photometrics, electronics and design. Working closely with architects, lighting designers and engineers, ERCO develops lighting tools used primarily for applications in the following fields: Work, Shop, Culture, Community, Hospitality, Living, Public and Contemplation. ERCO understands digital light as the fourth dimension of architecture - providing highly precise and efficient lighting solutions to support creative designers in turning their visions into reality.
If you require any further information on ERCO or image material, please visit us at We can also provide you with material on projects worldwide for your media coverage.

Relevant image material

Image 1 / Download HiRes

© ERCO GmbH,

Image 2 / Download HiRes

© ERCO GmbH,
